Name: Used Tsugami BE19 Swiss CNC Screw Machine
Brand: TSUGAMI
SKU: 7563773
Availability: InStock

Description

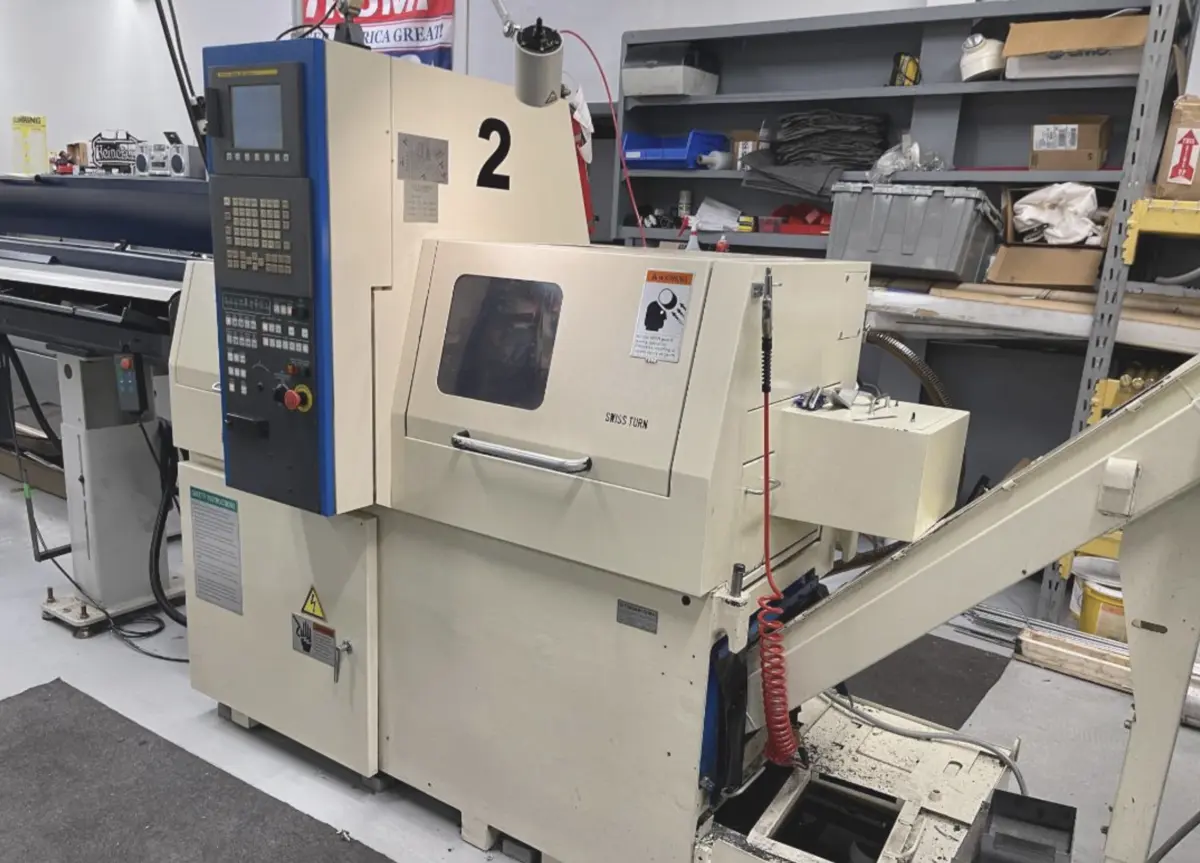

2007 Tsugami BE19 Hybrid (removable Guide Bushing) (7-Axis) Swiss CNC with IEMCA Magazine Loader, C-Axis Main, 3 Live Cross, Subspindle, Like New Condition, Can be seen under power The machine is in like New condition and is on my floor in West Haven CT

Long Description

The Tsugami BE series is available in 19mm (.787") model. The machine feature a full assortment of stationary and driven tool positions, and can be run with or without a guide bushing (in swiss or chucker mode.) Easy to use BE Abile software puts the power of the machine at your fingertips. <h1>Key Advantages Include:</h1> <ul><li>Capable Tool Zone: with 5 OD, 3 cross rotary, 4 ID, and 8 back working tool positions.</li><li>Convertible Machine: Convert to chucker mode in minutes!</li><li>Y Axis Milling: Cross rotary tools for complex machining.</li><li>Abile Software: Building block design process with graphic prove out of programs.</li><li>Simultaneous Operations: 2 path Fanuc CNC.</li></ul>

Specifications

Spindle Hole Dia	18 mm

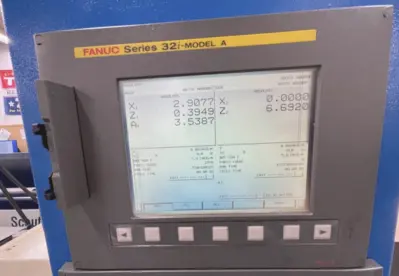

Control	CNC (Fanuc 31i-A)

Maximum Bar Capacity: BE19 - 20mm (.787")
Max. Workpiece Length: 170mm (6.70")
Main Spindle Speed: 12,000 rpm
Cross Rotary Tools: 5,000 rpm
Rapid Traverse Rate: 32m/min - 1260 ipm
Total Number of Tools: 20 Tools
Machine Weight: 2,200(4,490 lbs)
Machine Control: FANUC 31i-A

Equipped With

Can be Ran with or without Guide Bushing
20mm Bar Capacity
2200 hours of cutting time
Iemca Smart 320 Magazine Type Loader
21mm & 11mm guide channel sets
MP Systems 1000 psi high pressure coolant system w/ 4 outputs
Patrol light
Coolant thru sub spindle
Parts conveyor
Trimist Mist Collection Unit
BK micro drill breakage unit
